more (scheme, details, fotos) will be added later

Program to make screenshots for UNI-T DSO Oscilloscopes.

100% Compatible is now only with model UTD2025C.

If someone have other model specially 2000 and 3000 series, please send me a DAT file,

both lengths, normal + long, and attach setup: volts/div, sec/div, probe ratio. Thanks!

sample screenshot

Current version: v0.1 beta

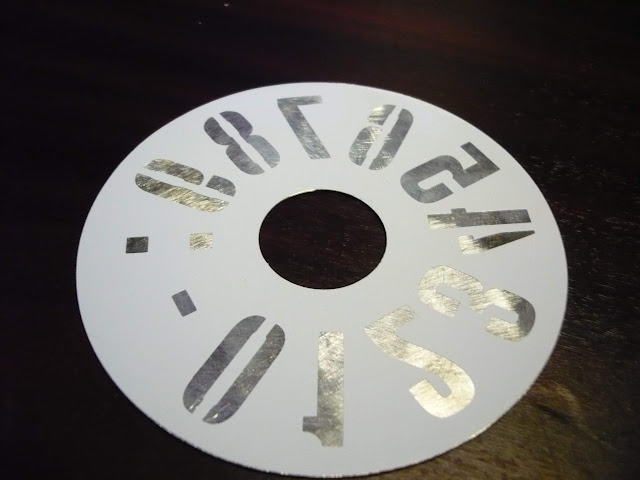

Another way for HDD Clock.

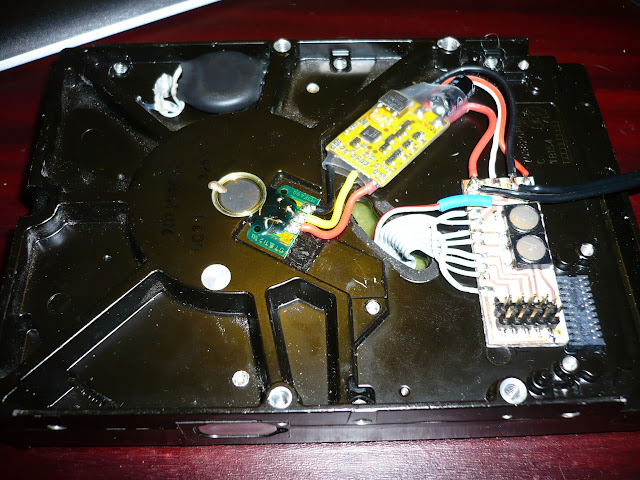

Because TDA5140A is "hard to find" part, so then can be replaced by standard RC motor controller.

No LED booster anymore, just connect LED's directly to power source.

More...

Planned parts:

• Motor: Brushless DC 24V/250W - Hub motor with planetary gear - mounted in 16" rim
• Controller: SBC V2
• Battery: Lead-Acid 12V/12Ah - Use two pieces, total 24V/12Ah
• Charger: LT1074HVCT - Step-Down switching regulator
• Panel: Kaneka Hybrid PV 135W (59V/2.2A)

Current status:

Because the company where I worked was closed (factory for assembling PV panels).
So I had to terminate this project :(

update 1 (22.06.2011)

• Because motor have a freewheel, and reverse rotation cannot be possible, then we must remove it.
• Completed charger, used LT1074HVCT connected as buck converter. With output 27,5V

More...

This is just prototype... We currently working on better (i hope faster) version :)

Shortly:

• 135W Kaneka solar panel
• unused trolley
• motor from broken shredder
• custom made AC inverter (convert 60V from panel into 150-250V required by motor)
• only panel, no battery

More...

Here is modified version of Mede8er V4.0.4

http://rapidshare.com/files/457086014/ME_V404_eGreat.rar

Modded DvdPlayer from /usr/local/bin/

Remote ID (4040 = eGreat)

 More...

By default - the eGreat do not detect 80-wire cable wich is required for transfers higher than UDMA2, simply because using SATA for connecting HDD and IDE port is unused. How to switch into UDMA6?

Read this...

More...

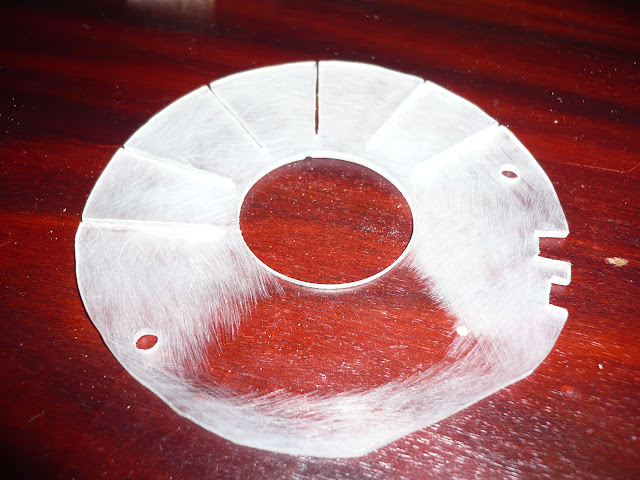

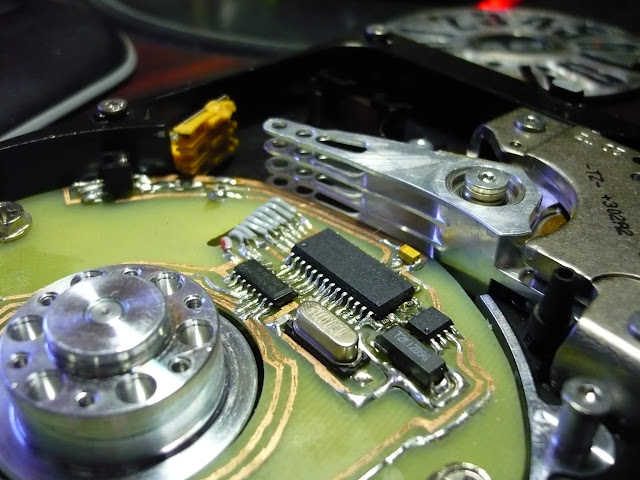

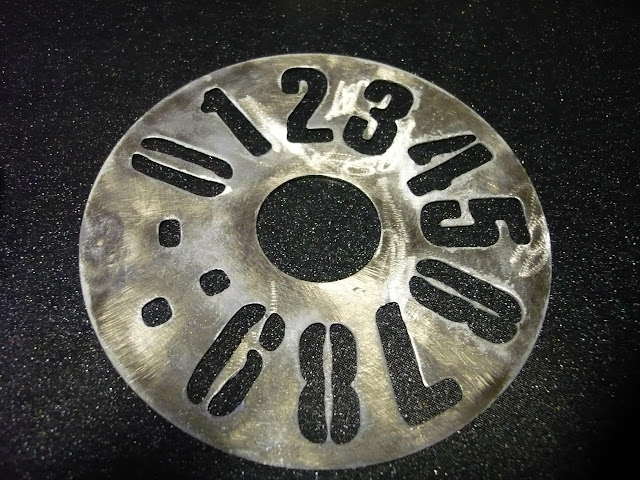

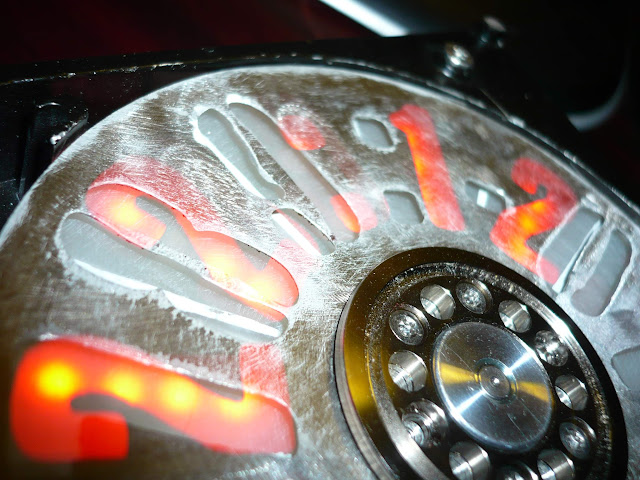

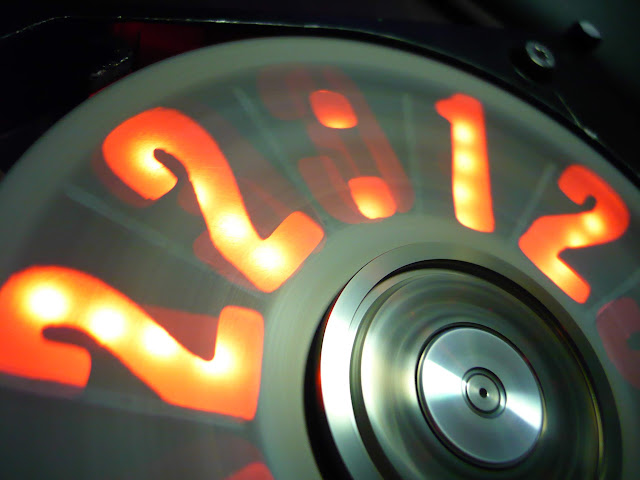

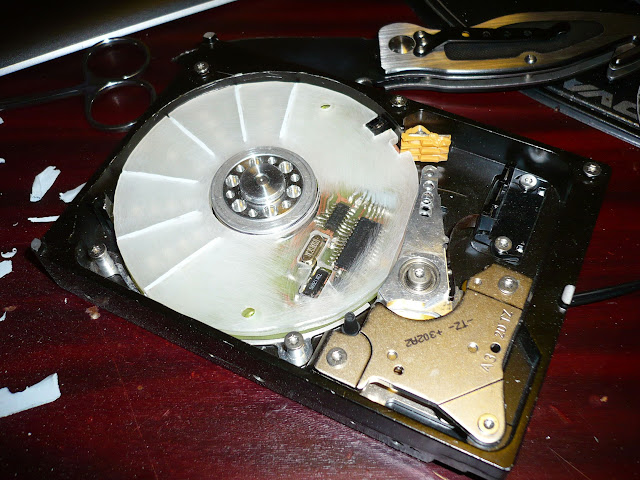

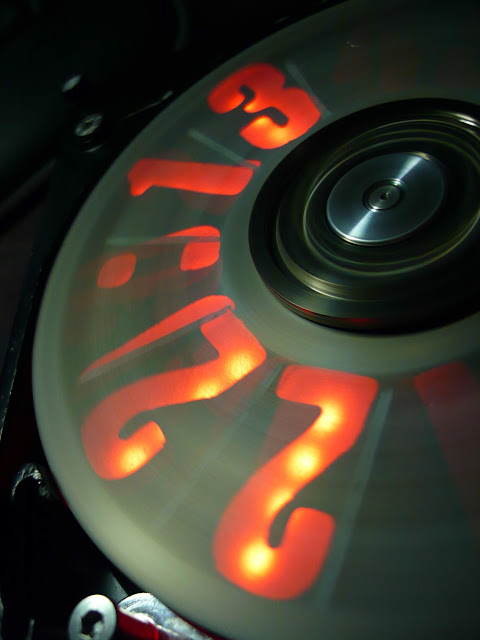

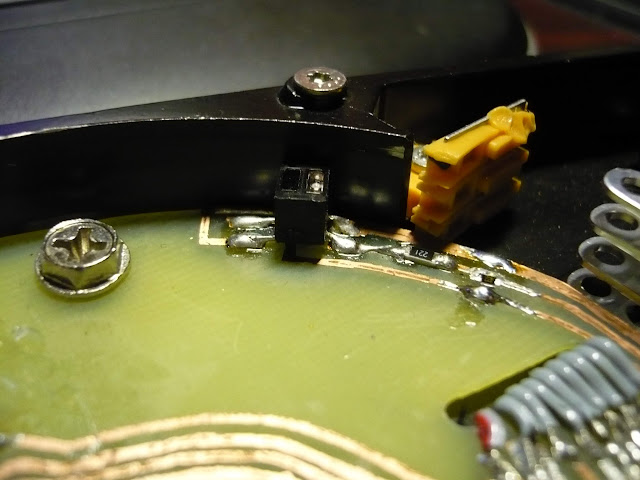

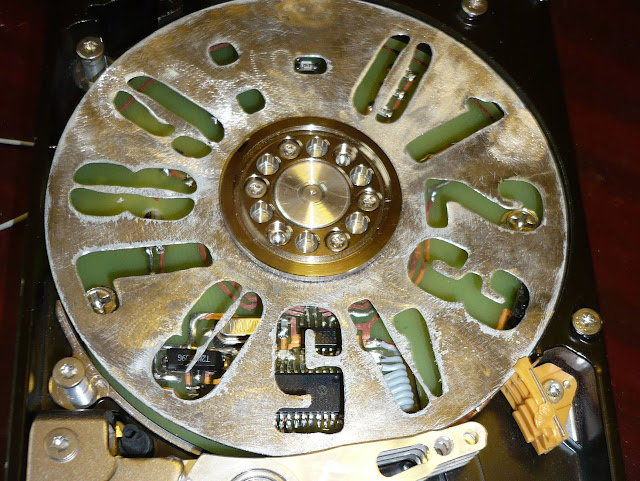

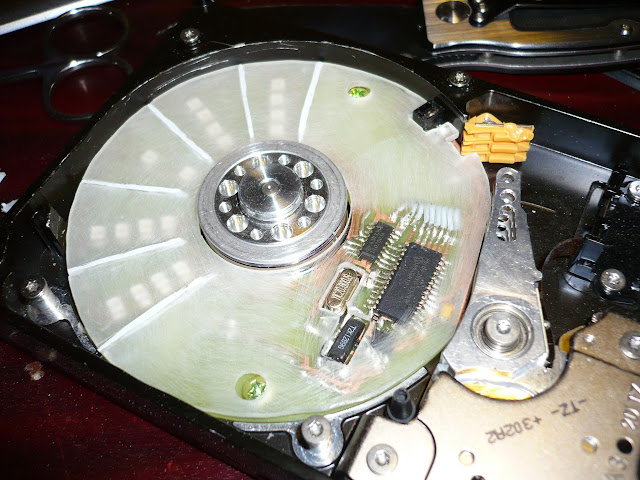

Inspired by Strobeshnik (http://sensi.org/~svo/strobeshnik/)

But, used different Hardware & Language

Used Hardware: PIC 18F2520 as CPU TDA5140A as Motor Driver 34063AP as LED Booster (Step-Up DC/DC) DS1307 as Clock Source ULQ2003A as Darlington Transistor Array

More...

For those tired of fill in a hundred times the same password.

Ex.: We have thousands of rar files protected by same password.

Instead of entering same password thousand-times, just use t his tool.

Download: http://area-71.net/files/wrpf.rar

More...

Connection of 24-pin connector on iPAQ:

...
5 VBUS_FS 2.0 USB Full Speed Host
6 D+HHS
7 D-HHS
8 GND System Ground
...

More...
